Depending on your vehicles trim level, features and options may vary.

Your vehicle is equipped with an instrument cluster display, which offers useful information to the driver. With the ignition in the OFF mode, opening/closing of a door will activate the display for viewing, and display the total miles, or kilometers, in the odometer. Your instrument cluster display is designed to display important information about your vehicle’s systems and features. Using a driver interactive display located on the instrument panel, your instrument cluster display can show how systems are working and give you warnings when they are not. The steering wheel mounted controls allow you to scroll through the main menus and submenus. You can access the specific information you want and make selections and adjustments.

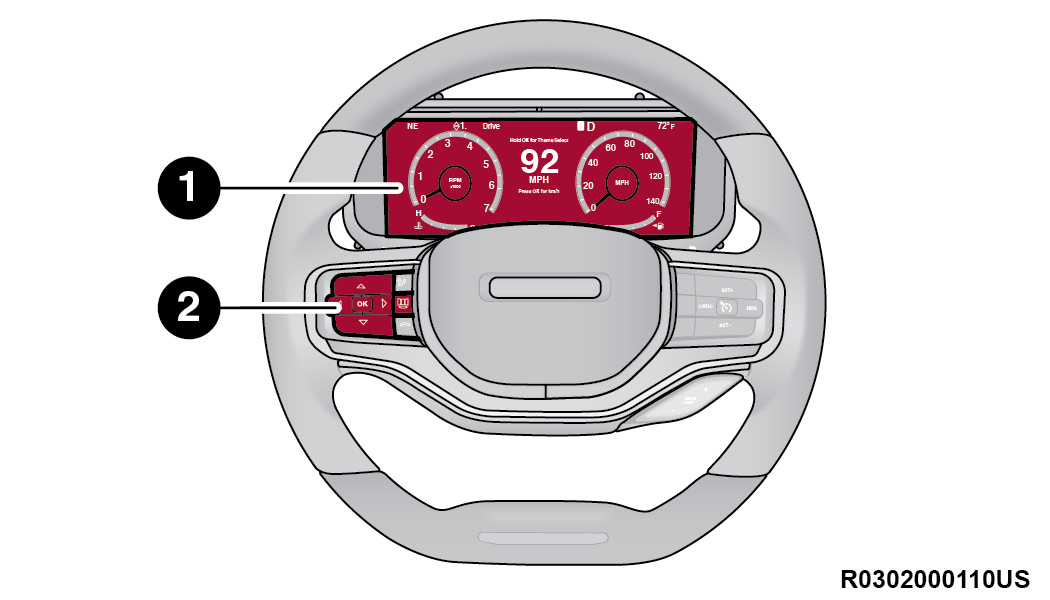

Instrument Cluster Display/Controls Location

1 – Instrument Cluster Display Screen
2 – Instrument Cluster Display Controls

The system allows the driver to select information by pushing the following buttons mounted on the steering wheel:

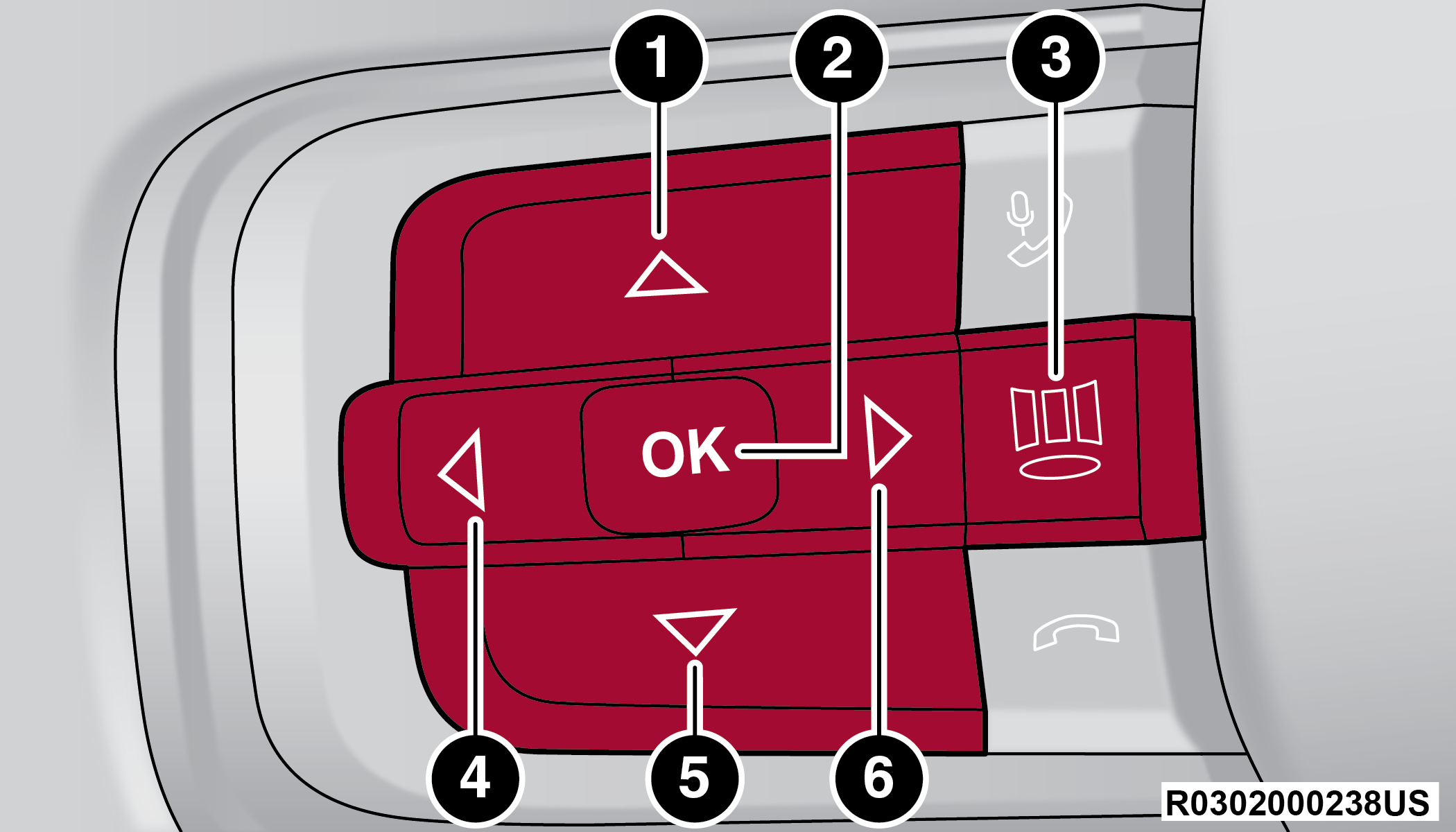

Instrument Cluster Display Control Buttons

1 — Up Arrow Button
2 — OK Button
3 — Menu Button
4 — Left Arrow Button
5 — Down Arrow Button
6 — Right Arrow Button

1. Up Arrow Button

   Push and release the up arrow button to scroll upward through the main menu.

2. OK Button

   Push the OK button to access/select the information screens or submenu screens of a main menu item. Push and hold the OK button for one second to reset displayed/selected features that can be reset.

3. MENU Button

   Push the MENU button to access/select the information screens or submenu screens of the Home Screen display. Push and hold the OK button to enter edit mode.

4. Left Arrow Button

   Push the left arrow button to return to the main menu from an info screen or submenu item.

5. Down Arrow Button

   Push and release the down arrow button to scroll downward through the main menu.

6. Right Arrow Button

   Push and release the right arrow button to access the information screens or submenu screens of a main menu item.

Display Options

Holding OK will also allow you to change your display to Digital or Analog.

• Digital theme will be the default theme

• Menu screen times out after 10 seconds. Press OK to reactivate

• Speedometer must always be present

• Relevant warning notifications and other pop-up info will still be displayed in the main screen area (In this case the speed moves to the top)

Custom Tile Configuration

To customize the instrument cluster further, you are able to select up to five tiles to display information based on your needs.

• Press the MENU button for the Home Screen display

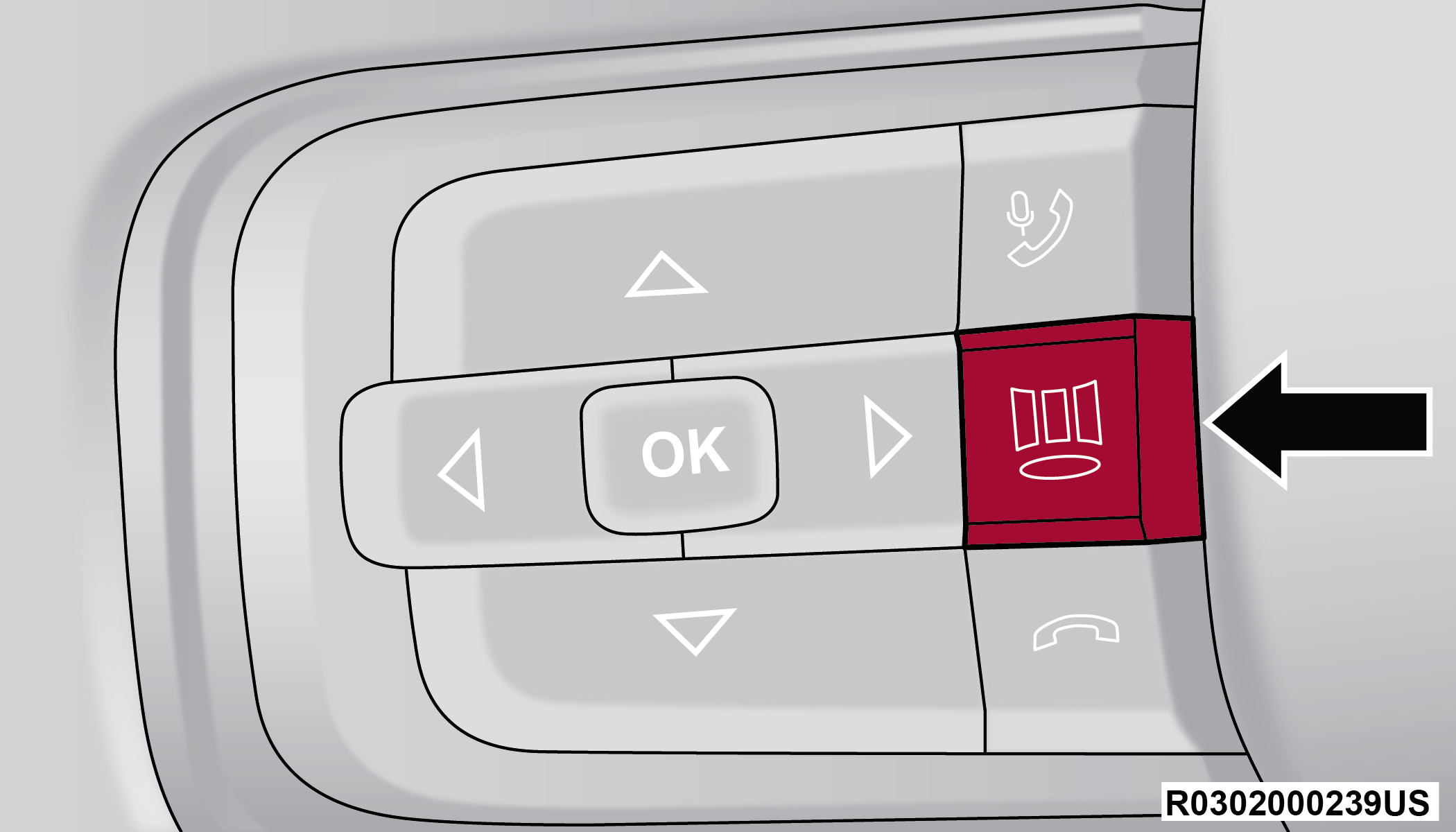

  Menu Button

• Navigate Left or Right to highlight desired Tile

• Press OK to select the tile and navigate to the selected submenu and press OK again to add your selection to your tile view

• The main menu options of the home screen are Driver Info, Vehicle Info, Navigation — If Equipped, Audio, and Off Road



  Customizable Tile Layout

• To edit, press menu button, then Hold OK to edit

The instrument cluster display is located in the center portion of the cluster and consist of multiple sections:

• Main Screen — The inner ring of the display will illuminate in gray under normal conditions, yellow for non critical warnings, red for critical warnings, and white for on demand information

• Submenu Dots — Whenever there are submenus available, the position within the submenus is shown here

• Reconfigurable Telltales/Information

• Gear Selector Status (PRND)

• Driver Interactive Display (Compass, Temp, Range to Empty, Trip A, Trip B, Average Fuel Economy, Current Fuel Economy and Time)

The instrument cluster display will normally display the main menu or the screens of a selected feature of the main menu. The main display area also displays pop-up messages that consist of approximately 60 possible warning or information messages. These pop-up messages fall into several categories:

• Five Second Stored Messages

  When the appropriate conditions occur, this type of message takes control of the main display area for five seconds and then returns to the previous screen. Most of the messages of this type are then stored (as long as the condition that activated it remains active) and can be reviewed from the “Messages” main menu item. Examples of this message type are “Right Front Turn Signal Lamp Out” and “Low Tire Pressure.”

• Unstored Messages

  This message type is displayed indefinitely or until the condition that activated the message is cleared. Examples of this message type are “Turn Signal On” (if a turn signal is left on) and “Lights On” (if driver leaves the vehicle with the lights on).

• Unstored Messages Until RUN

  These messages deal primarily with the Remote Start feature. This message type is displayed until the ignition is in the RUN state. Examples of this message type are “Remote Start Canceled - Door Ajar” and “Press Brake Pedal and Push Button to Start.”

• Five Second Unstored Messages

  When the appropriate conditions occur, this type of message takes control of the main display area for five seconds and then returns to the previous screen. An example of this message type is “Automatic High Beams On.”

Oil Change Required

Your vehicle is equipped with an engine oil change indicator system. The “Oil Change Required” message will display in the instrument cluster display for five seconds after a single chime has sounded, to indicate the next scheduled oil change interval. The engine oil change indicator system is duty cycle based, which means the engine oil change interval may fluctuate, dependent upon your personal driving style and environmental conditions.

Unless reset, this message will continue to display each time the ignition is placed in the ON/RUN position. To turn off the message temporarily, push and release the OK or arrow buttons. To reset the oil change indicator system (after performing the scheduled maintenance), refer to the following procedure.

Vehicles Equipped With Keyless Enter ‘n Go™ Ignition

Use the steering wheel instrument cluster display controls for the following procedure(s):

1. Without pressing the brake pedal, push the ENGINE START/STOP button and place the ignition in the ON/RUN position (do not start the engine).

2. Push and release the down arrow button to scroll downward through the main menu to “Vehicle Info.”

3. Push and release the right arrow button to access the “Oil Life” screen.

4. Push and hold the OK button to reset oil life. If conditions are met, the gauge and numeric display will update to show 100%. If conditions are not met a pop-up message of “To reset oil life engine must be off with ignition in run” will be displayed (for five seconds), and the user will remain at the Oil Life screen.

5. Push and release the up or down arrow button to exit the submenu screen.

Secondary Method Of Resetting Engine Oil Life

1. Without pressing the brake pedal, push the ENGINE START/STOP button and place the ignition to the ON/RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times within 10 seconds.

3. Without pushing the brake pedal, push the ENGINE START/STOP button once to return the ignition to the OFF position.

May include the following, but not limited to:

The Reconfigurable Telltales section is divided into the white or yellow telltales area on the left, and the green or red telltales area on the right.

The instrument cluster display can be used to view the main menu items for several features. Use the upand downarrow buttons to scroll through the driver interactive display menu options until the desired menu is reached.

Press the Menu button to display the Home Screen.

Push and release the leftor rightarrow button to highlight the desired selection. Push and release the OK button to select. Press the upor downarrow button to select a different screen within the selected category. If the Menu button is pressed in this view, the instrument cluster will return to the previously displayed screen.

Home Screen Options

• Navigation

  • Map Display

  • Trip Trip A/Trip B

• Vehicle Info

  • Coolant Temp

  • Stop/Start Status — If Equipped

  • Trans Temp

  • Oil Temp

  • Oil Pressure

  • Battery Voltage

  • Oil Life

  • Oil Level – If Equipped

  • Tire Pressure

  • Fuel Economy

• Main Menu — If Equipped

  • Posted Speed Limit Sign

  • Driver Assist

• Audio

  • Audio Info

• Off Road

  • Selec-Terrain/Air Suspension Status

  • Steering Angle

  • Pitch

  • Roll

Speedometer

While viewing the Speedometer menu title, push and release the left or right arrow button until the Night Vision menu title is displayed in the instrument cluster display. Push and release the OK button to toggle units (mph or km/h) of the speedometer. Hold the OK button to toggle between Analog and Digital speedometer.

Night Vision

While viewing the Speedometer menu title, push and release the left or right arrow button until the Night Vision menu title is displayed in the instrument cluster display. Arrow buttons and submenu indicators disappear after five seconds of menu navigation inactivity. Pedestrian/Animal icons will be displayed in the top left location NIGHT VISION CAMERA SYSTEM — IF EQUIPPED.

Driver Assist

While viewing the Speedometer menu title, push and release the left or right arrow button until the Driver Assist menu title is displayed in the instrument cluster display. The Driver Assist screen indicates the current status of ACC, Active Lane Management and Active Driving Assist/Assist+/Pilot AUXILIARY DRIVING SYSTEMS.

Push and release the upor downarrow button until the Vehicle Info icon/title is highlighted in the instrument cluster display. Push the leftor rightarrow button to scroll through the information submenus.

Gauge Summary

• Coolant Temperature — If Equipped

  Displays the current temperature of the coolant.

• Transmission Temperature

  Displays the actual transmission temperature.

• Oil Temperature

  Displays the actual oil temperature.

• Oil Pressure

  Displays the actual oil pressure.

• Battery Voltage

  Displays the current voltage level of the battery.

Oil Life

• Displays the current oil life of the vehicle.

Tire Pressure Monitoring System

• If tire pressure is OK for all tires a vehicle icon is displayed with tire pressure values in each corner of the icon.

• If one or more tires have low pressure, “Inflate Tire To XX” is displayed with the vehicle icon and the tire pressure values in each corner of the icon with the pressure value of the low tire are displayed in a different color than the other tire pressure value.

• If the Tire Pressure system requires service, “Service Tire Pressure System” is displayed.

Tire Pressure is an information only function, and cannot be reset Tire Pressure Monitoring System (TPMS).

Stop/Start Status — If Equipped

• Display current status of Stop/Start system.

Push and release the upor downarrow button until the Trip menu title is displayed in the instrument cluster display. Toggle the leftor rightarrow button to select Trip A or Trip B. The Trip information will display the following:

• Distance – Shows the total distance (mi or km) traveled for Trip A or Trip B since the last reset.

• Average Fuel Economy – Shows the average fuel economy (MPG or L/100 km or km/L) of Trip A or Trip B since the last reset.

• Elapsed Time – Shows the total elapsed time of travel since Trip A or Trip B has been reset.

Hold the OK button to reset feature information.

Push and release the leftor rightarrow button until the Navigation display icon/title is highlighted in the instrument cluster display.

• “Hold OK to Start Route” will display when no active route is set.

• “Hold OK to Cancel Route” will display when an active route is set.

Push and release the upor downarrow button until the Off Road Menu icon/title is highlighted. Push the leftor rightarrow button to scroll the submenus.

• Terrain Status

  • Selec-Terrain Status

  • Air Suspension Status

• Vehicle Dynamics

  • Wheel Articulation

  • Transfer Case Status

  • Steering Angle

• Pitch And Roll

  • Vehicle Pitch

  • Vehicle Roll

Push and release the up or down arrow button until the Trailer Tow Menu icon/title is highlighted in the instrument cluster display. Push and release the left or right arrow button to select Trailer Trip or Trailer Brake.

Push and release the upor down arrow button until the Audio Menu icon/title is highlighted in the instrument cluster display. This menu will display the audio source information, including the Song name, Artist name, and audio source with an accompanying graphic.

Push and release the upor downarrow button until the Messages Menu item is highlighted. This feature shows the number of stored warning messages. Pushing the leftor rightarrow button will allow you to see what the stored messages are.

When no messages are present, main menu icon will be a closed envelope.

Screen Setup

Push and release the up or down arrow button until the Settings Menu icon/title is highlighted in the instrument cluster display. Push and release the OK button to enter the submenus and follow the prompts on the screen as needed. The Settings feature allows you to change what information is displayed in the instrument cluster as well as the location that information is displayed.

Current Gear

• On

• Off

Tachometer

• Show with Digital Theme

• Hide with Digital Theme

Odometer

• Show

• Hide

Defaults (Restores All Settings To Default Settings)

• Restore

• Cancel

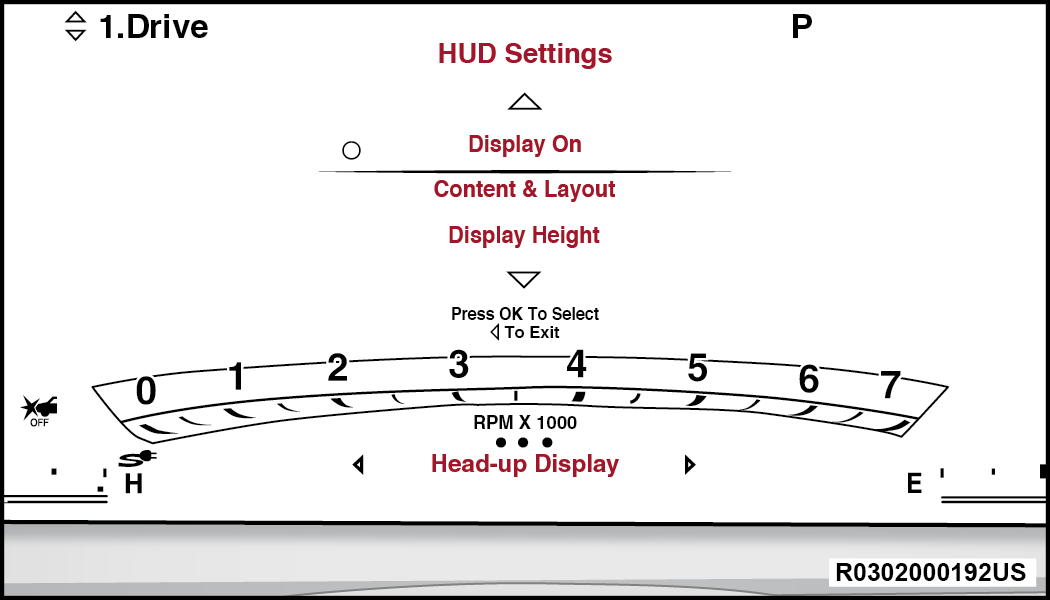

Push and release the up or down arrow button until the Settings Menu icon/title is highlighted in the instrument cluster display. Push and release the leftright arrow button until the HUD Menu icon/title is highlighted in the instrument cluster display. Push and release the OK button to enter HUD. Use the up or down arrow button to select a setting, then push and release the OK button to adjust the setting.

• ON/OFF



  HUD ON/OFF

  When “Display On” is selected, the HUD will display on the windshield. When it is not selected, there will be no display on the windshield.

• Content and Layout

  • Simple: Speed, Speed Limit

  • Standard: Speed, Speed Limit, Navigation

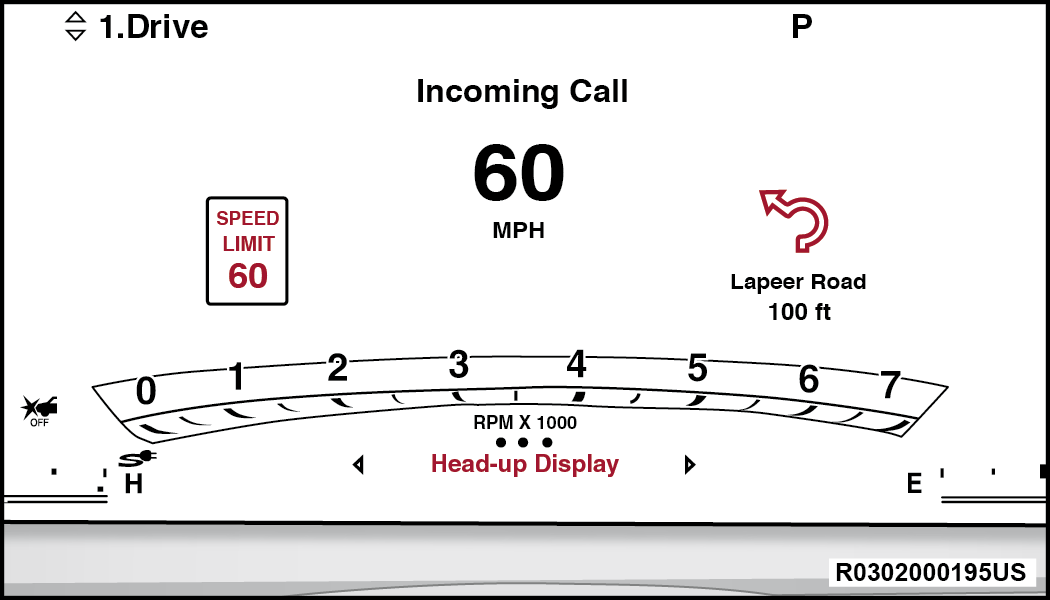

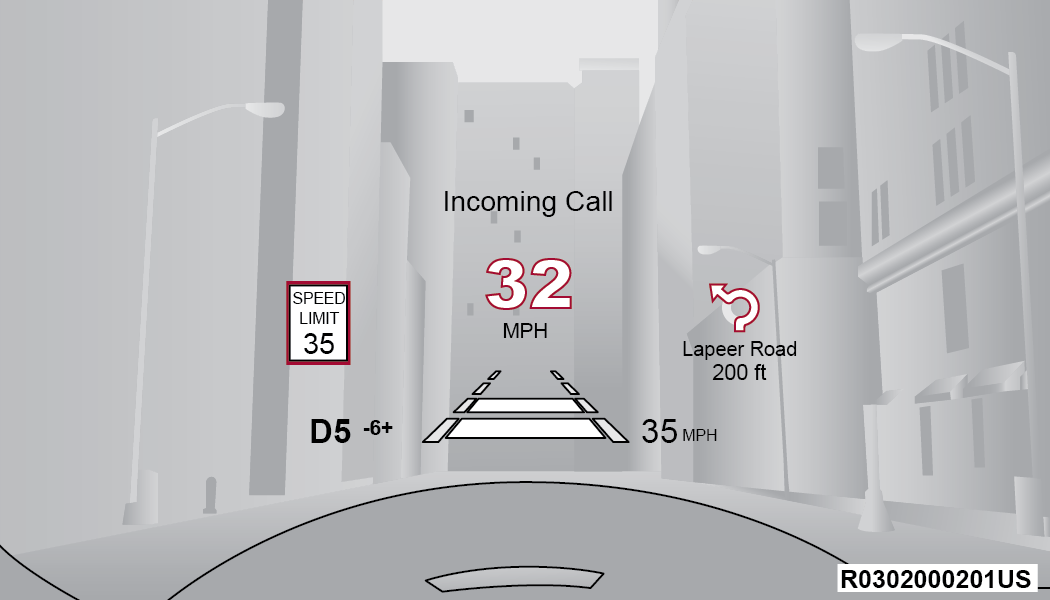

    Standard Mode

    When “Standard” mode is selected, the HUD image is split into thirds with the speed limit indicator shown to the left, vehicle speed in the center, and turn-by-turn navigation to the right.

  • Advanced: Speed, Speed Limit, Navigation, Driver Assist (ACC/Cruise, Active Lane Management, Active Driving Assist), Gear (only available in Sport mode)



    Advanced Mode

    When “Advanced” mode is selected, the HUD displays the vehicle speed, turn-by-turn navigation, speed limit, driver assist function(s), and current gear.

  • Custom 1: Speed, Speed Limit

  • Custom 2: Speed, Speed Limit, Navigation

  • Custom 3: Speed, Speed Limit, Navigation, Driver Assist (ACC/Cruise, Active Lane Management, Active Driving Assist)

  • Custom 4: Speed, Speed Limit, Navigation, Driver Assist (ACC/Cruise, Active Lane Management, Active Driving Assist), Gear (only available in Sport mode)

• Display Height

• Brightness

This vehicle is equipped with an Intelligent Battery Sensor (IBS) to perform additional monitoring of the electrical system and status of the vehicle battery.

In cases when the IBS detects charging system failure, or the vehicle battery conditions are deteriorating, electrical load reduction actions will take place to extend the driving time and distance of the vehicle. This is done by reducing power to or turning off non-essential electrical loads.

Load reduction is only active when the engine is running. It will display a message if there is a risk of battery depletion to the point where the vehicle may stall due to lack of electrical supply, or will not restart after the current drive cycle.

When load reduction is activated, the message “Battery Saver On” or “Battery Saver Mode” will appear in the instrument cluster.

These messages indicate the vehicle battery has a low state of charge and continues to lose electrical charge at a rate that the charging system cannot sustain.

The electrical loads that may be switched off (if equipped), and vehicle functions which can be affected by load reduction:

• Heated Seat/Vented Seats/Heated Wheel

• Rear Defroster And Heated Mirrors

• HVAC System

• 115 Volt AC Power Inverter System

• Audio and Telematics System

Loss of the battery charge may indicate one or more of the following conditions:

• The charging system cannot deliver enough electrical power to the vehicle system because the electrical loads are larger than the capability of the charging system. The charging system is still functioning properly.

• Turning on all possible vehicle electrical loads (e.g. HVAC to max settings, exterior and interior lights, overloaded power outlets +12 Volt, 115 Volt AC, USB ports) during certain driving conditions (city driving, towing, frequent stopping, etc.).

• Installing options like additional lights, upfitter electrical accessories, audio systems, alarms and similar devices.

• Unusual driving cycles (short trips separated by long parking periods).

• The vehicle was parked for an extended period of time (weeks, months).

• The battery was recently replaced and was not charged completely.

• The battery was discharged by an electrical load left on when the vehicle was parked.

• The battery was used for an extended period with the engine not running to supply radio, lights, chargers, +12 Volt portable appliances like vacuum cleaners, game consoles and similar devices.

What to do when an electrical load reduction action message is present (“Battery Saver On” or “Battery Saver Mode”)

During a trip:

• Reduce power to unnecessary loads if possible:

  • Turn off redundant lights (interior or exterior)

  • Check what may be plugged in to power outlets +12 Volt, 115 Volt AC, USB ports

  • Check HVAC settings (blower, temperature)

  • Check the audio settings (volume)

After a trip:

• Check if any aftermarket equipment was installed (additional lights, upfitter electrical accessories, audio systems, alarms) and review specifications if any (load and Ignition Off Draw currents).

• Evaluate the latest driving cycles (distance, driving time and parking time).

• The vehicle should have service performed if the message is still present during consecutive trips, and if the evaluation and driving pattern of the vehicle did not help to identify the cause.
