Courtesy and dome lights are turned on when the front doors are opened or the Dome ON button is pushed on the overhead console. If your vehicle is equipped with Remote Keyless Entry and the unlock button is pushed on the key fob, the courtesy and dome lights will turn on. When a door is open and the interior lights are on, pressing the Dome Defeat button on the overhead console will cause all of the interior lights to turn off. This allows the doors to stay open for extended periods of time without discharging the vehicle’s battery.
The overhead console lights can also be operated individually as reading lights by pushing the corresponding buttons.

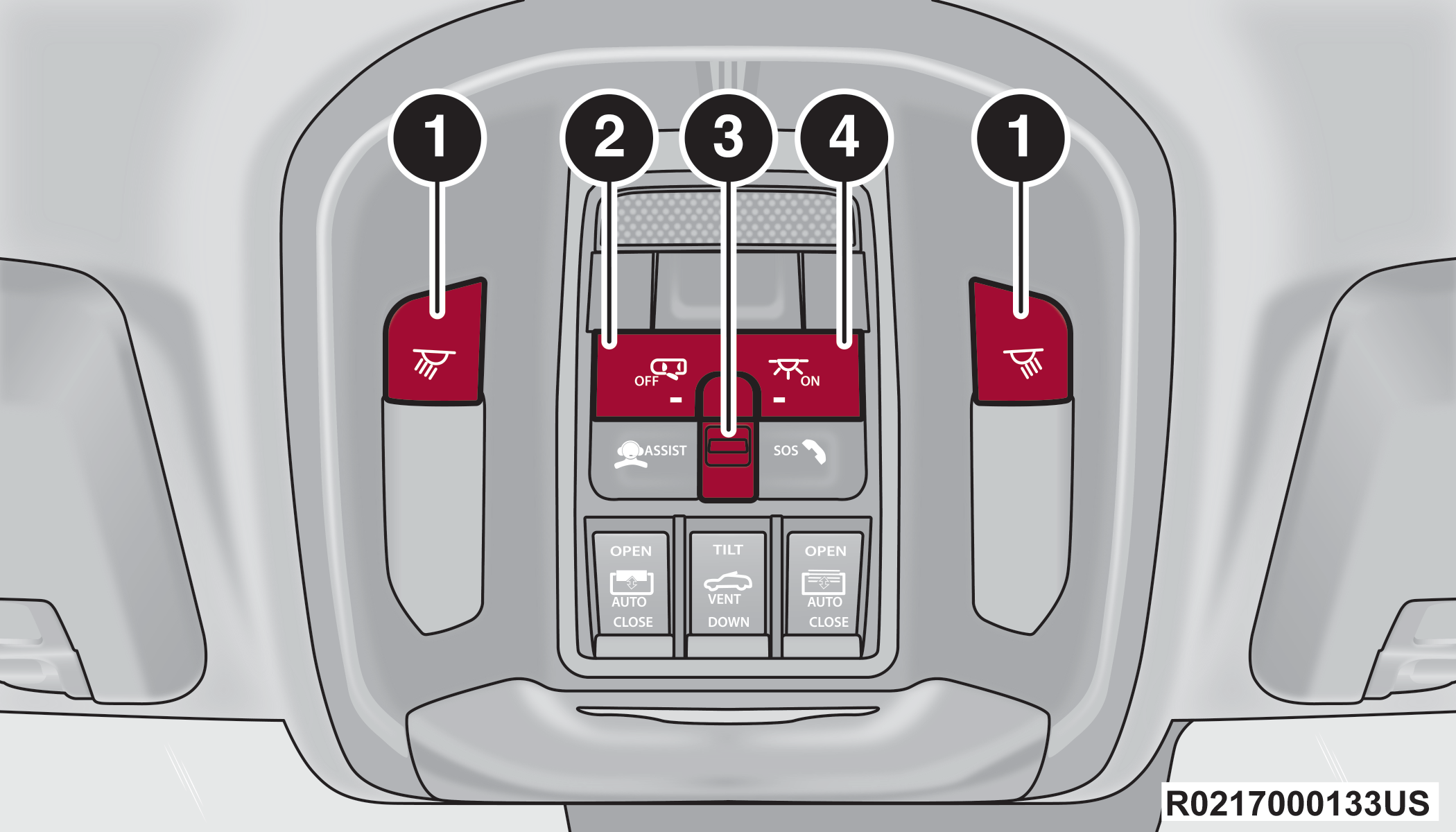

Courtesy Lights
|
1 — Reading Light On/Off Buttons |
|
2 — Dome Defeat Button |
|
3 — Ambient Light |
|
4 — Dome ON Button |
Located above the rear passenger seating in both second and third rows, along the trim, are courtesy/reading lights. The courtesy lights turn on when a door or the liftgate is opened. The lights will also turn on when the unlock button on the key fob is pushed.
The courtesy lights also function as reading lights. Push the lens button to turn these lights on while inside the vehicle. Push the lens button a second time to turn each light off.
The dimmer controls are inboard and adjacent to the headlight switch located on the left side of the instrument panel.
With the parking lights or headlights on, rotating the right dimmer control upward will increase the brightness of the instrument cluster lights. Rotating the left dimmer control will adjust the interior light levels of the ambient lighting on the instrument panel and doors. The ambient lighting may be color customizable Multicolor Ambient Lighting — If Equipped.

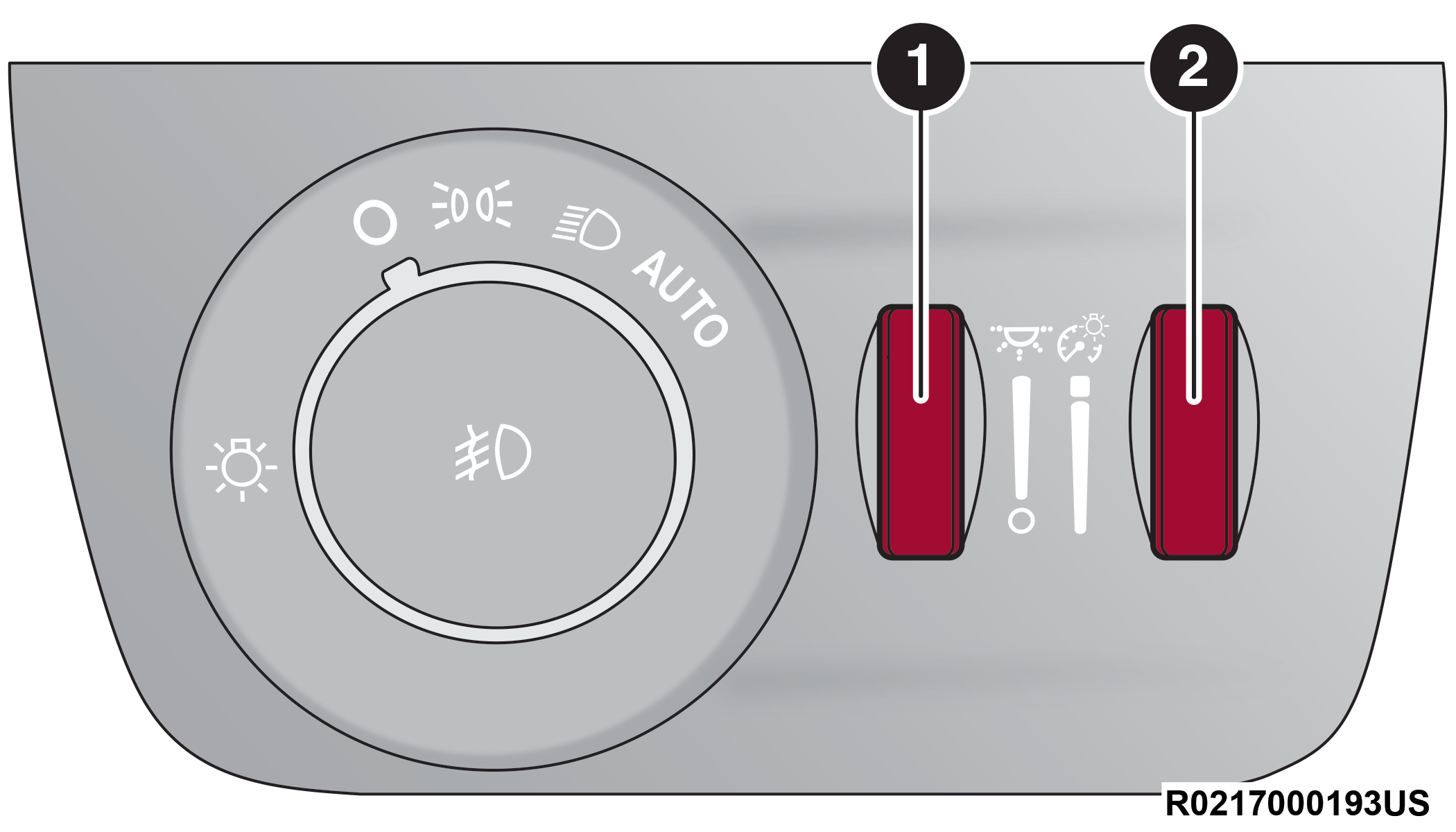

Dimmer Controls
| 1 — Ambient Light Dimmer Control |
| 2 — Instrument Panel Dimmer Control |
Dimmer Controls (Vehicles Sold In Canada Only)
| 1 — Ambient Light Dimmer Control |
| 2 — Instrument Panel Dimmer Control |
Ambient lighting in the second and third row seating areas may not be equipped in the vehicle.
The dimming of the touchscreen is programmable through the Uconnect system UCONNECT SETTINGS.
The color of certain ambient lighting inside of the vehicle can be selected within the Apps menu on the radio screen, or within Uconnect Settings UCONNECT SETTINGS. Brightness is adjusted using the ambient light dimmer control on the headlight switch.
Five colors can be selected for the following two zones inside of the vehicle:
Zone 1:
Instrument panel decorative ambient lights
Door panel decorative ambient lights
Zone 2:
Front seat footwell areas below the instrument panel
Lighting below the second row seats
Map pocket lighting on all four door panels
These areas can be set to different colors, or if the SYNC button is selected within the settings menu, all colored lights will be set to the same color automatically.
All other ambient lighting inside of the vehicle will remain white, and the ambient light dimmer control switch will adjust all ambient lighting at the same time.
