Your vehicle uses an industry standard SAE J1772 charge inlet (vehicle charge inlet) for both AC Level 1 (120 V) and AC Level 2 (240 V) charging.

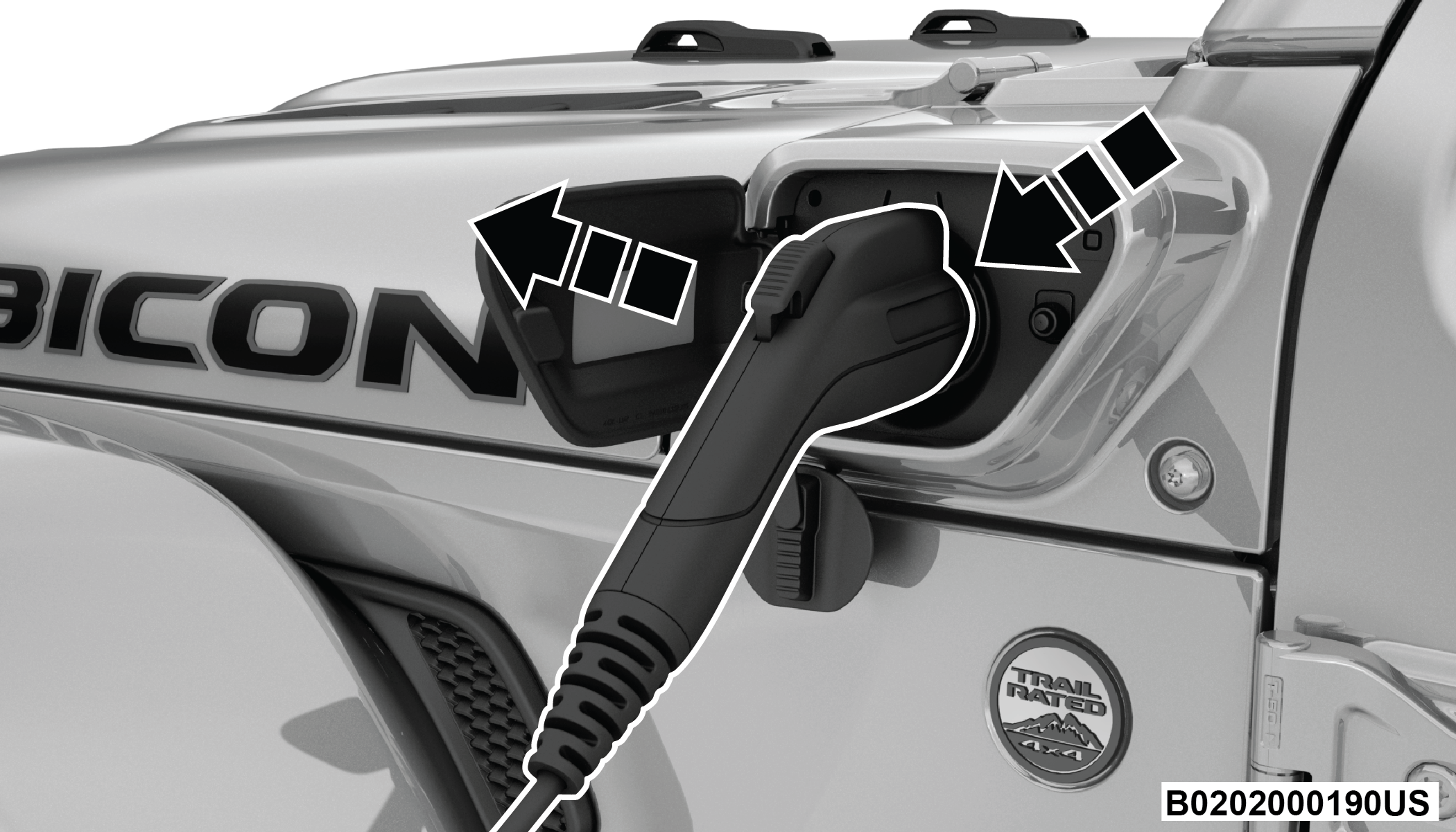

Vehicle Charge Inlet Location
Open the charge port door by pushing near the rear outer edge of the door, near the center to unlatch. To close the charge port door, engage the door latch by pushing on the rear outer edge near the center.
Your vehicle is equipped with a 120 Volt AC, SAE J1772 Level 1 Electric Vehicle Supply Equipment (EVSE), also referred to as a Portable Charging Cordset (EVSE). AC Level 1 charging requires a conventional NEMA 5-15R 120 Volt AC grounded wall outlet along with the Portable Charging Cordset (EVSE) provided with the vehicle.
Please be sure to follow the warnings below. Failure to do so may result in serious injury or death
Discontinue use of the Portable Charging Cordset (EVSE) immediately if the plug or outlet becomes hot to the touch or if you notice any unusual odors.
Do not use the Portable Charging Cordset (EVSE) in building structures that use fuse-based circuit protection. Use only with electrical circuits protected by circuit breakers.
Do not use the Portable Charging Cordset (EVSE) if other devices are plugged into the same circuit.
When unplugging the Portable Charging Cordset (EVSE) from the wall outlet, be sure to pull by the plug, and not the cord.
Do not pull, twist, bend, step on or drag the cord of the Portable Charging Cordset (EVSE).
Stop using the Portable Charging Cordset (EVSE) immediately if charging stops before it’s completed when the plug or cord is moved or adjusted.
Do not use the Portable Charging Cordset (EVSE) if the plug has a loose connection with the wall outlet or if the wall outlet is damaged or rusted.
If in any doubt about the wall outlet and/or circuit, contact a qualified electrician.
Do not use if a malfunction occurs or if the Portable Charging Cordset (EVSE) has been damaged in any manner. It is recommended that you contact an authorized dealership.
There are no user serviceable parts inside the Portable Charging Cordset (EVSE). Do not attempt to repair or service the Portable Charging Cordset (EVSE), doing so will void the New Vehicle Warranty.
Portable Charging Cordset (EVSE)
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK: Electrical shock, fire, and other serious hazards can occur if the Portable Charging Cordset (EVSE) is not used properly. This vehicle uses a high voltage current. Failure to follow the proper charging instructions in this publication can cause serious injury or death. There are no serviceable parts in the Portable Charging Cordset (EVSE). Do not open, disassemble, penetrate, or tamper with the Portable Charging Cordset (EVSE). Failure to follow this warning can result in electrical shock, fire, property damage, and death or serious injury.
The Portable Charging Cordset (EVSE) is stored in the rear cargo area below the load floor. To access this area, lift up the cargo strap of the load floor cover, and remove the Portable Charging Cordset (EVSE) from the storage bag in the bin below.
Moving, Transporting, And Storage Instructions
After use, the Portable Charging Cordset (EVSE) should be placed in the storage bag and put back in the cargo storage area. If the Portable Charging Cordset (EVSE) will be left outside the vehicle, be sure to protect the device’s connection end from moisture, dirt, and debris accumulation and contamination.

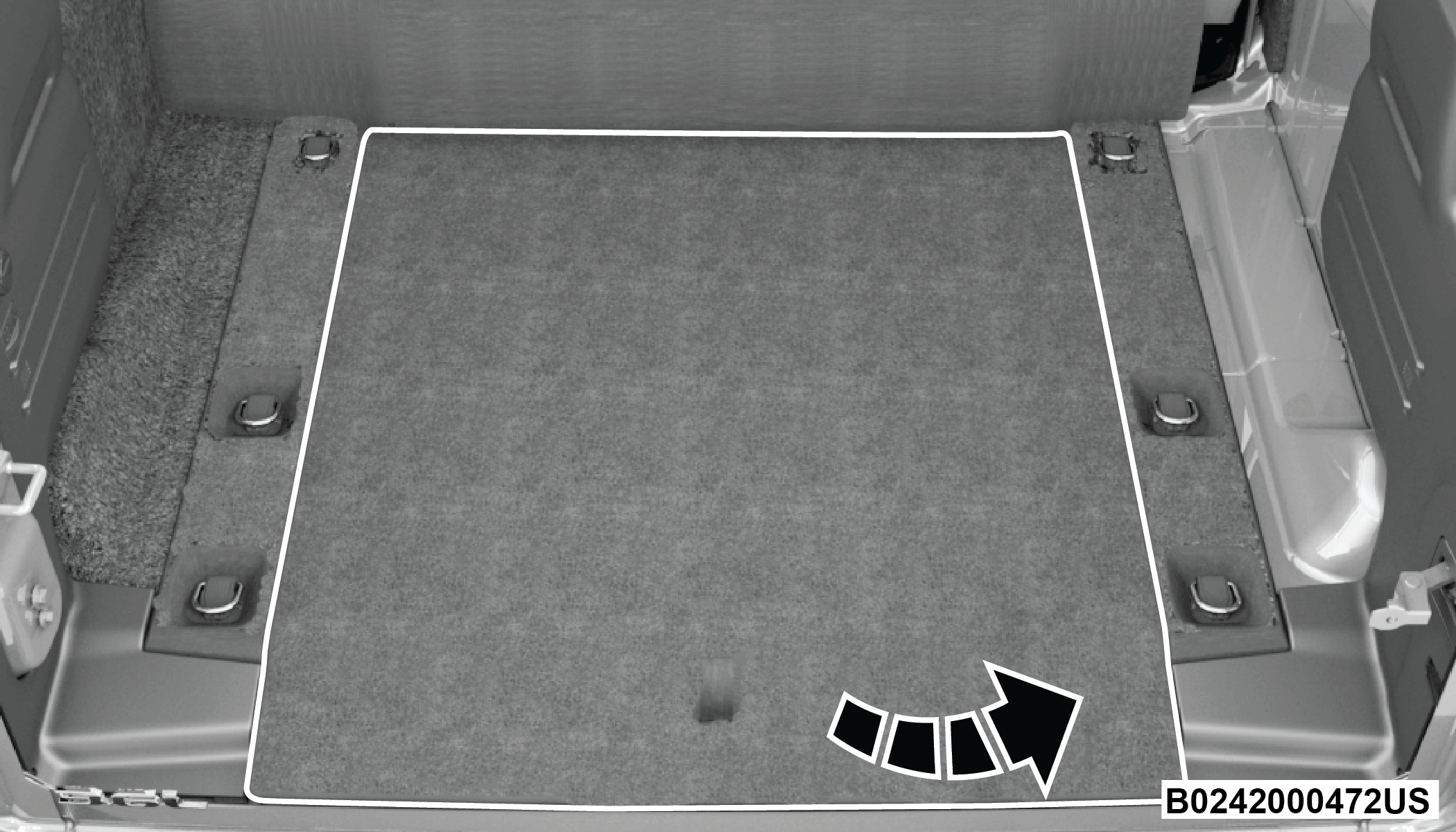

Load Floor Cover
The Portable Charging Cordset (EVSE) is used for AC Level 1 charging only.
IMPORTANT SAFETY INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK: This publication contains important instructions and warnings that should be followed during charging operations. Failure to follow these warnings and instructions can result in electrical shock and fire which can cause death or serious injury.
Read this entire publication before using the Portable Charging Cordset (EVSE).
Do not put fingers or objects into the Portable Charging Cordset (EVSE) connector.
Do not use the Portable Charging Cordset (EVSE) if the flexible power cord is frayed, broken, has cracked insulation, or any other signs of damage.
Do not use the Portable Charging Cordset (EVSE) if the enclosure or the connector is broken, cracked, open, or shows any other indication of damage.
Do not use the Portable Charging Cordset (EVSE) with an extension cord or plug adapters.
The Portable Charging Cordset (EVSE) may attempt to reset and run after a power interruption.
There are no user serviceable parts inside the Portable Charging Cordset (EVSE). Do not attempt to repair or service the Portable Charging Cordset (EVSE) yourself – personal injury may result.
When using a charging station with the Portable Charging Cordset (EVSE) attached, ensure the charging station’s cable is not visibly damaged before plugging into the vehicle.
Do not allow children to operate the Portable Charging Cordset (EVSE). Adult supervision is mandatory when children are in proximity to the charge station that is in use.
Do not use a charge station or vehicle charge inlet that is worn or damaged with the AC Level 2 charging cable. Plugging into worn or damaged receptacles may cause damage to the Portable Charging Cordset (EVSE) and vehicle.
Ensure that the Portable Charging Cordset (EVSE) is always stored in a safe place. Do not expose the EVSE J1772 vehicle connector to rain or wet conditions. Avoid allowing water or other liquids to pour or drip onto the vehicle connection end of the J1772 EVSE connector. If water penetrates the electrical device, the risk of electrical shock increases. Ensure that all plugs and cables are free of moisture before using the Portable Charging Cordset (EVSE).
In a collision, a loose Portable Charging Cordset (EVSE) in the vehicle could cause injury. It could fly around in a sudden stop and strike someone in the vehicle. Do not store the Portable Charging Cordset (EVSE) on the cargo load floor, or in the passenger compartment.
The Portable Charging Cordset (EVSE) has been tested for use in temperatures ranging from -40°F to 122°F (-40°C to 50°C).
The Portable Charging Cordset (EVSE) should be stored at temperatures between -40°F and 176°F (-40°C and 80°C).
SAVE THESE INSTRUCTIONS.
The Portable Charging Cordset (EVSE) is compliant with SAE J1772, and applicable for use with vehicles fitted with standard SAE J1772 charge inlets. The Portable Charging Cordset (EVSE) includes:
A Charge Connector
A NEMA 6 rated enclosure with a Charge Current Interrupt Device (CCID) with status indicator display
An AC Power Cord with a NEMA 5–15P right angle plug
An indoor/outdoor charge cable, EV-rated
A Status Indicator Display

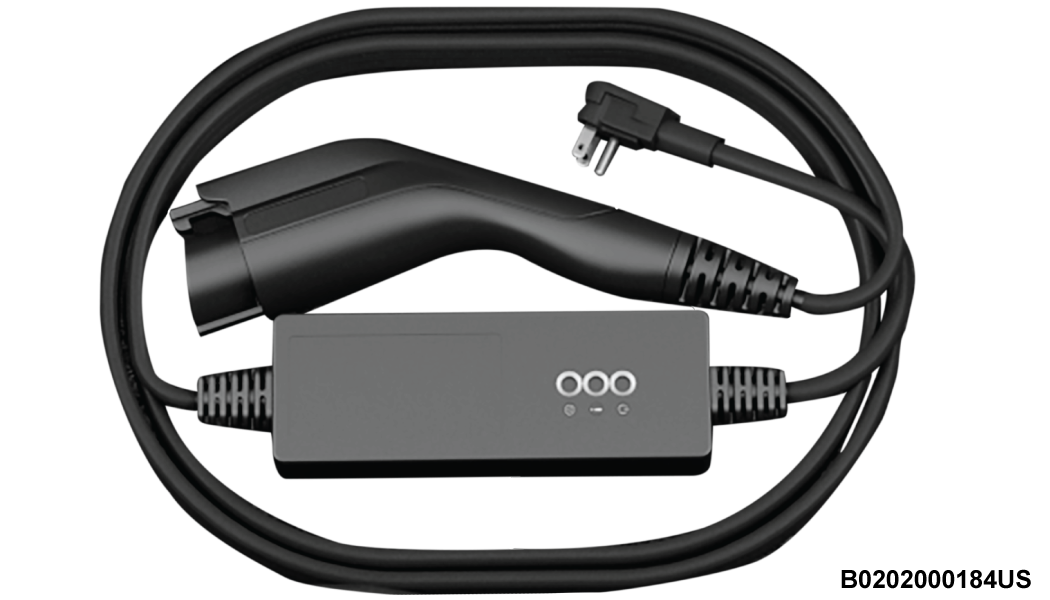

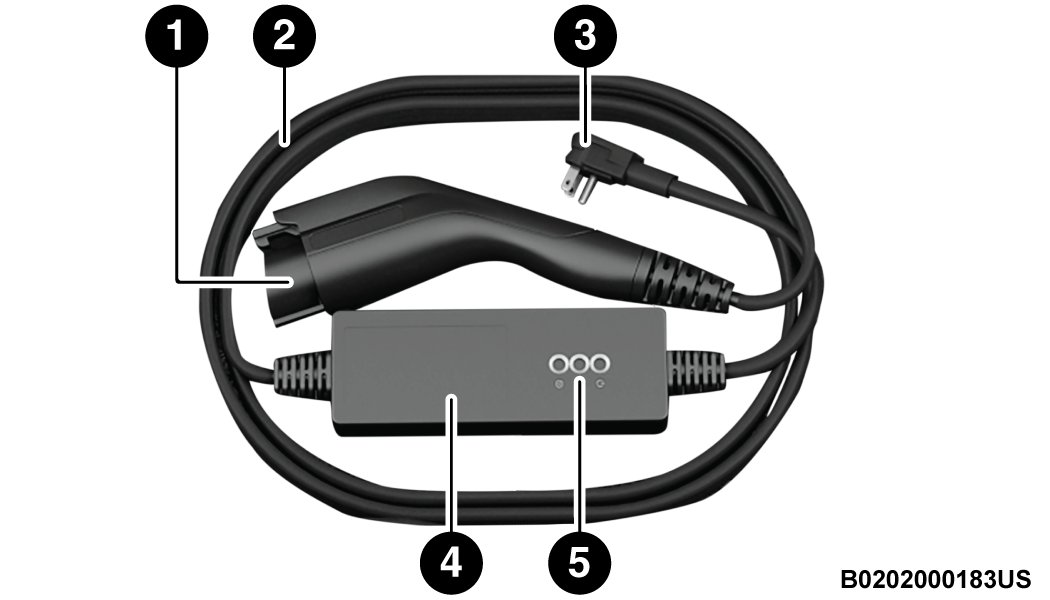

Portable Charging Cordset (EVSE)
| 1 — Charge Connector |
| 2 — Charge Cable |
| 3 — AC Plug |
| 4 — EVSE Enclosure |
| 5 — Status Indicator Display |
For A Grounded, Cord-Connected Product:
The Portable Charging Cordset (EVSE) must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for an electric current to reduce the risk of electric shock. The Portable Charging Cordset (EVSE) is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK: Do not use the Portable Charging Cordset (EVSE) on electrical circuits with two-prong outlets; use with improper outlets could result in electric shock, fire, property damage, and death or serious injury. Check with a qualified electrician if you are in doubt as to whether the wall outlet is properly grounded. Do not modify the plug prongs provided with the Portable Charging Corset (EVSE) – if it does not fit the outlet, you must have a proper outlet installed by a qualified electrician.
Always insert the AC plug prongs of the Portable Charging Cordset (EVSE) into a 15 A, or 20 A, 120 VAC, 60 Hz, grounded wall outlet first. Do not use an extension cord, outlet/plug adapter, or a worn outlet. The Portable Charging Cordset (EVSE) will not operate safely unless it is plugged directly into the wall outlet.
The Portable Charging Cordset (EVSE) should be plugged into a dedicated circuit, not a circuit shared with other devices drawing electricity on the circuit.

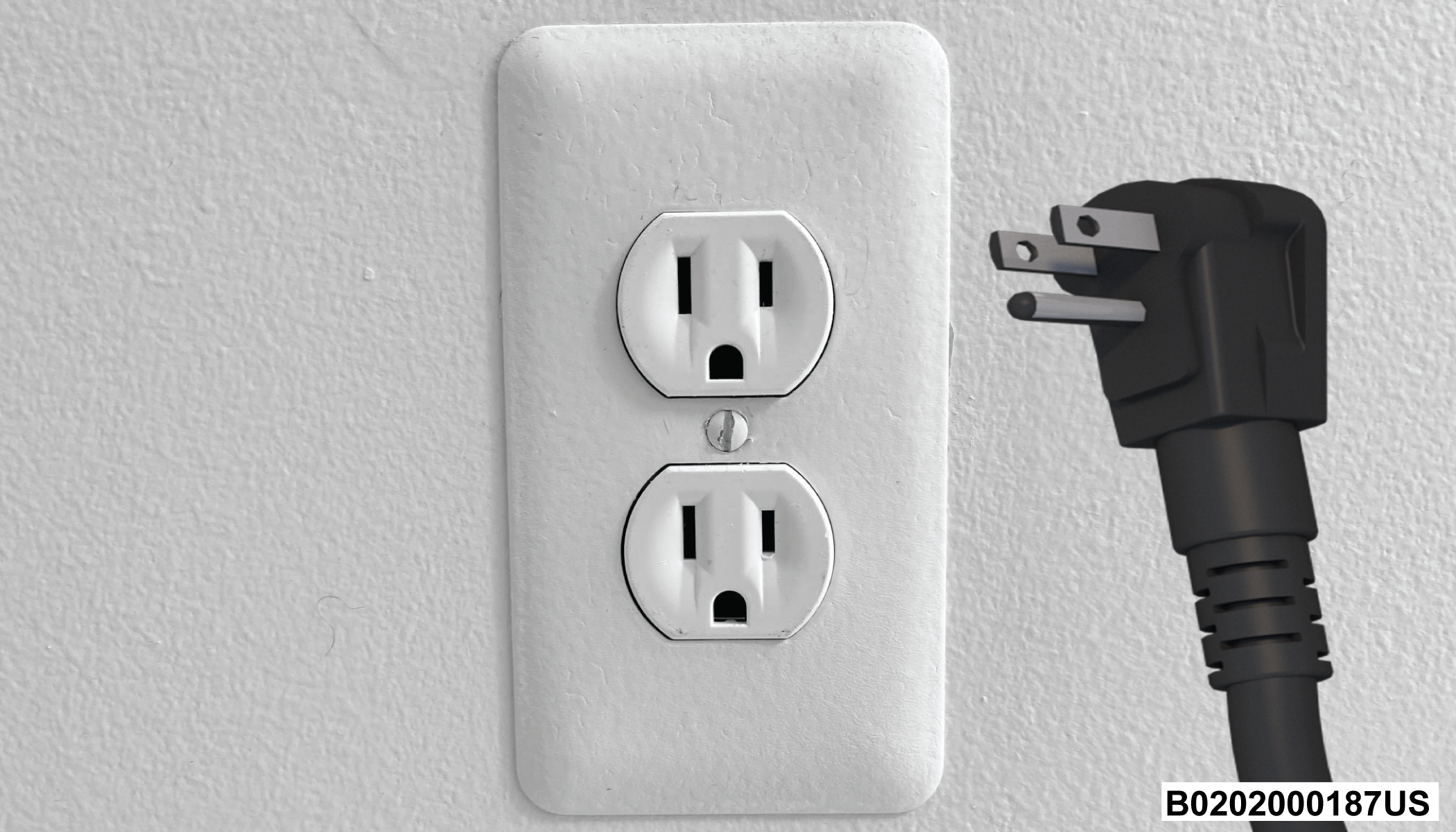

AC Plug And Wall Receptacle
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK: Do not use the Portable Charging Cordset (EVSE) on electrical circuits with two-prong outlets; use with improper outlets could result in electric shock, fire, property damage, and death or serious injury. Check with a qualified electrician if you are in doubt as to whether the wall outlet is properly grounded. Do not modify the plug prongs provided with the Portable Charging Corset (EVSE) – if it does not fit the outlet, you must have a proper outlet installed by a qualified electrician.
Check to see if the Portable Charging Cordset (EVSE) is ready to charge by reviewing the indicator lights.
Portable Charging Cordset (EVSE) Indicator Lights
| 1 — AC Power Indicator Light |
| 2 — Fault Indicator Light |
| 3 — Check Outlet Indicator Light |
If the Portable Charging Cordset (EVSE) is ready to charge, ensure the vehicle is in PARK, and then connect the charge connector to the vehicle’s charge inlet. You will hear a “click” when the charge connector is inserted correctly and coupled with the vehicle’s charge inlet.

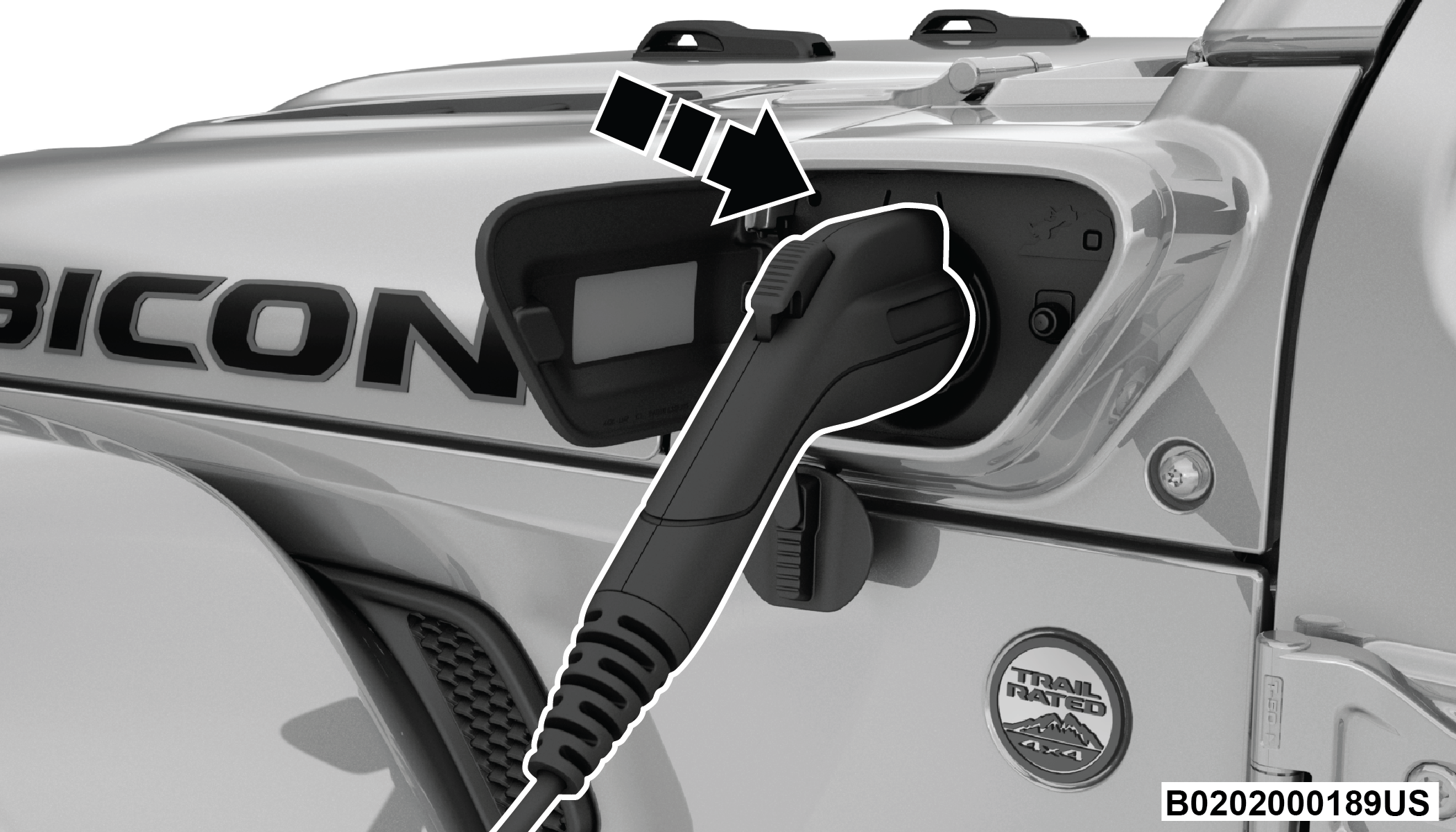

Inserting The Charge Connector Into The Vehicle Charge Inlet
When the vehicle commences charging, the green indicator light will turn on.
The vehicle should start charging automatically. If not, please check the following:
Portable Charging Cordset (EVSE) — The Portable Charging Cordset (EVSE) status indicator lights illuminate green, red, or yellow to identify the charging status Troubleshooting Using The Status Indicator Display.
Wall Outlet — Check whether the wall outlet is functional (no power outage) and/or plug the Portable Charging Cordset (EVSE) into a different wall outlet.
Charging Schedule — Check whether the charging schedules have been enabled. If enabled, check that you are within the scheduled time and day of the week. If a charging schedule has been enabled in the vehicle, and it is outside the time and day of the week, you may override the schedule for this charging event by plugging in the charge connector, unplugging it, and then plugging it back into the vehicle charge inlet. Complete the double plug sequence within 10 seconds for it to override the set schedule.
Hood Ajar — Check whether the hood is open. Charging is disabled while the hood is open, and will resume when the hood closes.
To stop the charging process, disconnect the Portable Charging Cordset (EVSE) from the vehicle first, and then from the wall outlet. To disengage the vehicle coupler, push the button on the connector.
Removing The Charge Connector From The Vehicle Charge Inlet
Close the inlet door when a Portable Charging Cordset (EVSE) is not connected to the vehicle.
It is good practice to keep the ignition in the OFF position while conducting Level 1 charging. This minimizes any additional vehicle loads the Portable Charging Cordset (EVSE) has to support. The additional electrical loads will extend the high voltage battery charging time.
If the vehicle is not charging properly, consult the status indicator lights.
The Green LED signals correct operation of the system.
The Red LED signals a failure in the charging system.
The Yellow LED signals a failure with the outlet.
LED Indicator Lights
1 — Green LED |
2 — Red LED |
3 — Yellow LED |
Any faults in charging are displayed by the LEDs, either steady or flashing, located on the status indicator display of the Portable Charging Cordset (EVSE). Refer to the following troubleshooting table.
|
Portable Charging Cordset (EVSE) Charging System Failure Troubleshooting |
||||
|---|---|---|---|---|
|
Green LED |
Red LED |
Yellow LED |
Description |
Action/Consequences |
|
OFF |
OFF |
OFF |
Portable Charging Cordset (EVSE) not connected to the domestic charging outlet or power failure in the domestic power supply mains. |
|
|
ON |
OFF |
OFF |
There are no faults in the domestic power supply mains, so the Portable Charging Cordset (EVSE) can be connected to the charge inlet on the vehicle. |
|
|
ON |
ON (Flashing) |
ON |
Overheating at the charging outlet of the domestic power supply mains. |
When the normal temperature is reached, the system will make a new charge attempt at a lower current level. |
|
ON |
OFF |
ON (Flashing) |
Charging to a lower current level due to overheating of the charging outlet of the domestic power supply mains. |
|
|
ON |
ON |
ON (Flashing) |
Overheating at the charging outlet of the domestic power supply mains. |
Carefully disconnect the Portable Charging Cordset (EVSE) from both the vehicle and power outlet and wait for the plug and outlet to return to normal temperatures. Then, reconnect the Portable Charging Cordset (EVSE) to the power outlet and vehicle and charge again. Contact a qualified electrician in case of a new anomaly. |
|
ON |
ON (2 Blinks) |
ON (2 Blinks) |
Lack of grounding cable in the charging outlet of the domestic power supply mains. |
The system will make a new charge attempt after 30 seconds (6 attempts in total). |
|
ON |
ON |
ON (2 Blinks) |
Lack of grounding cable in the charging outlet of the domestic power supply mains. |
The new charge attempt failed. Disconnect the Portable Charging Cordset (EVSE) from the vehicle and the outlet and reconnect it, then try to charge again. Contact a qualified electrician in case of a new anomaly. |
|
ON (Flashing) |
OFF |
OFF |
Domestic mains power incorrectly supplied. |
The system will make a new charge attempt after 30 seconds (6 attempts total). If the fault persists, disconnect the Portable Charging Cordset (EVSE) from the vehicle and the outlet and reconnect it, then try to charge again. Contact a qualified electrician in case of a new anomaly. |
|
ON |
ON (Flashing) |
OFF |
Charge Current Interrupt Device (CCID) fault trip over one second after relay closure. Portable Charging Cordset (EVSE) retrying to charge the vehicle. |
The system will make a new charge attempt after 30 seconds (6 attempts in total). |
|
ON |
ON |
OFF |
Charge Current Interrupt Device (CCID) fault, Retry Exhausted or Retry is disallowed if trips within one second of relay closure. |
The new charge attempt failed. Disconnect the Portable Charging Cordset (EVSE) from the vehicle and the outlet and reconnect it, then try to charge again. Contact an authorized dealership in case of a new anomaly. |
|
ON |
ON |
OFF |
Dispersion of the electricity on the vehicle. |
Disconnect the Portable Charging Cordset (EVSE) from the vehicle and the outlet and reconnect it, then try to charge again. Contact an authorized dealership in case of a new anomaly. |
|
ON |
ON (Flashing) |
OFF |
Electric charging current too high. |
The system will make a new charge attempt after 30 seconds (6 attempts total). |
|
ON |
ON (7 Blinks) |
OFF |
Electric charging current too high. |
The new charge attempt failed. Disconnect the Portable Charging Cordset (EVSE) from the vehicle and the outlet and reconnect it, then try to charge again. Contact an authorized dealership in case of a new anomaly. |
|
ON |
ON (2 Blinks) |
OFF |
Charging abnormality on the vehicle. |
The system will make a new charge attempt after 30 seconds (6 attempts total). If the fault persists, disconnect the Portable Charging Cordset (EVSE) from the vehicle and the domestic power outlet and reconnect it, then try to charge again. Contact an authorized dealership in case of a new anomaly. |
|
ON |
ON (3 Blinks) |
OFF |
Portable Charging Cordset (EVSE) failure. |
|
|
ON |
ON (4 Blinks) |
OFF |
||
|
ON |
ON (5 Blinks) |
OFF |
||
|
ON |
ON (6 Blinks) |
OFF |
Guidelines for preventing fire and electric shock:
Ensure the Portable Charging Cordset (EVSE) is positioned so it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
There are no user serviceable parts inside.
Do not use the Portable Charging Cordset (EVSE) if it is visibly damaged. Contact an authorized dealership for service.
Do not place fingers, or any other objects inside the charge connector.
Do not allow children to operate the Portable Charging Cordset (EVSE). Adult supervision is mandatory when children are in proximity when the Portable Charging Cordset (EVSE) is in use.
Do not use the Portable Charging Cordset (EVSE) with an extension cord or plug adapters.
Do not unplug the Portable Charging Cordset (EVSE) from the wall outlet during a charging operation.

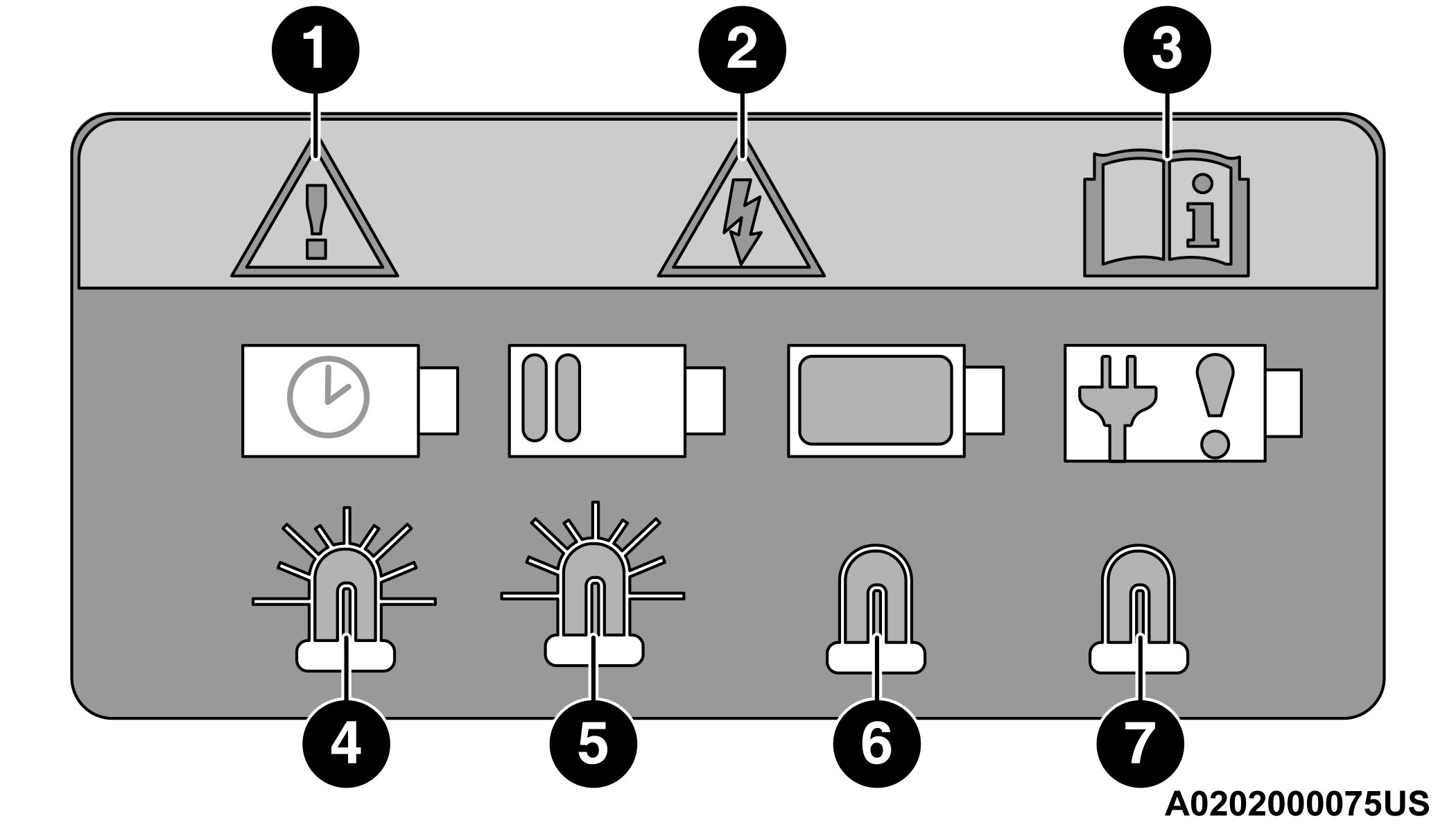

Charging Inlet Warning Label
1 — Dangerous Situation |
2 — Risk Of Electric Shock |
3 — Reference Owner’s Information |
4 — Charging Timer Set |
5 — Charging Procedure In Progress |
6 — Charging Procedure Complete |
7 — Fault In Charging Procedure |
During normal operation, the charge connector or AC plug may feel warm. If either one feels hot during charging, unplug the Portable Charging Cordset (EVSE) and have a qualified electrician inspect the wall outlet before you continue charging .
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK: Do not use the Portable Charging Cordset (EVSE) with an outlet that is worn or damaged. Failure to follow this warning can result in electrical shock, fire, property damage, and death or serious injury.
AC Level 2 (240 Volt) charging requires a 240 Volt, Level 2 Electric Vehicle Supply Equipment (EVSE) charging station. A 40 Amp Level 2 EVSE for home installation is recommended.
When using public charging stations, ensure the charging station is ready to provide charge and the vehicle is in PARK before the Level 2 EVSE is plugged into the vehicle’s charge inlet. You will hear a “click” when the charge connector is inserted correctly and is coupled with the vehicle’s charge inlet.
The vehicle should start charging automatically. If not, please check the following:
Charging Station — Check the indications and instructions at the charging station.
Charging Schedule — Check whether the charging schedule is enabled and if so, whether the vehicle is currently within the scheduled charge time/day (weekday/weekend). If the charging schedule is enabled within the vehicle, you may override it for this charging event by plugging in the charge connector, unplugging it, and then plugging it back into the vehicle charge inlet. Complete the double plug sequence within 10 seconds for it to override the set schedule.
Hood Ajar — Check whether the hood is open. Charging is disabled while the hood is open, and will resume when the hood closes.
To stop the charging process:
Press the “STOP” button located on the front of the EVSE station.
Press the button located on the Level 2 EVSE vehicle connector.
Remove the connector from the vehicle charge inlet.
Plug the charge handle into the Level 2 EVSE station and coil the charging cord onto its holder. Do not leave the charging cord lying on the ground.
The following factors determine the time it takes to charge the high voltage battery:
The high voltage battery’s current state of charge
The type of Electric Vehicle Supply Equipment (EVSE) used (Level 1 – 120 V or Level 2 – 240 V)
Ambient temperature
Whether the vehicle’s ignition is in the RUN position during charging
The following charging times are estimates based on charging a high voltage battery that has a <1% State Of Charge (SOC) value displayed in the instrument cluster.
Charging times will vary based on the age, condition, SOC, available current being provided to the charger from its energy source, and temperature of the high voltage battery.
Charging times may be longer if a thermal self-protection reduces the charging current from the EVSE being used.
If the vehicle’s ignition is in either the ACC or RUN position, the vehicle charge indicator may not indicate greater than a 99% SOC and will continue to charge the vehicle, due to the vehicle loads.
|
Type of EVSE |
Estimated Charge Time |
|---|---|
|
Level 1 (120 V/15 A) |
Approximately 12 hours |
|
Level 2 (240 V/30 A or 32 A) |
Approximately 2 hours |

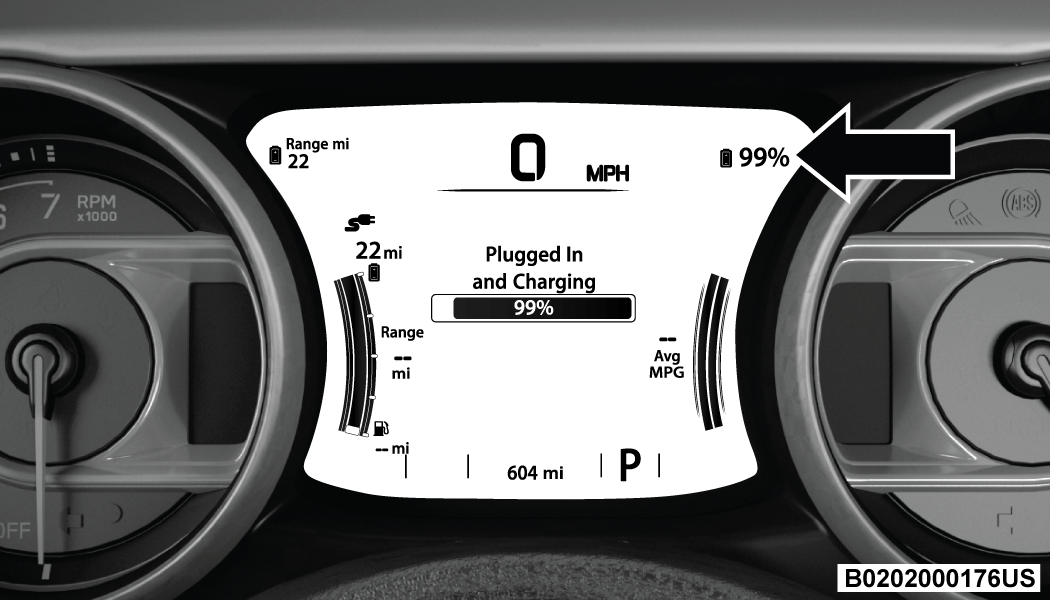

Instrument Cluster High Voltage Battery Display
There is a battery display indicator located on the instrument cluster. The battery display will indicate the current State Of Charge (SOC) for the high voltage battery; with the percentage value located to the right of the symbol. When plugged in, the battery symbol also indicates the battery level along with messages about the charge or whether the system is waiting to charge due to the charge schedule. These will appear unless there is a charging fault. A green plug telltale will be shown in the cluster, as well as applicable messaging when charging.
High Voltage Battery Display

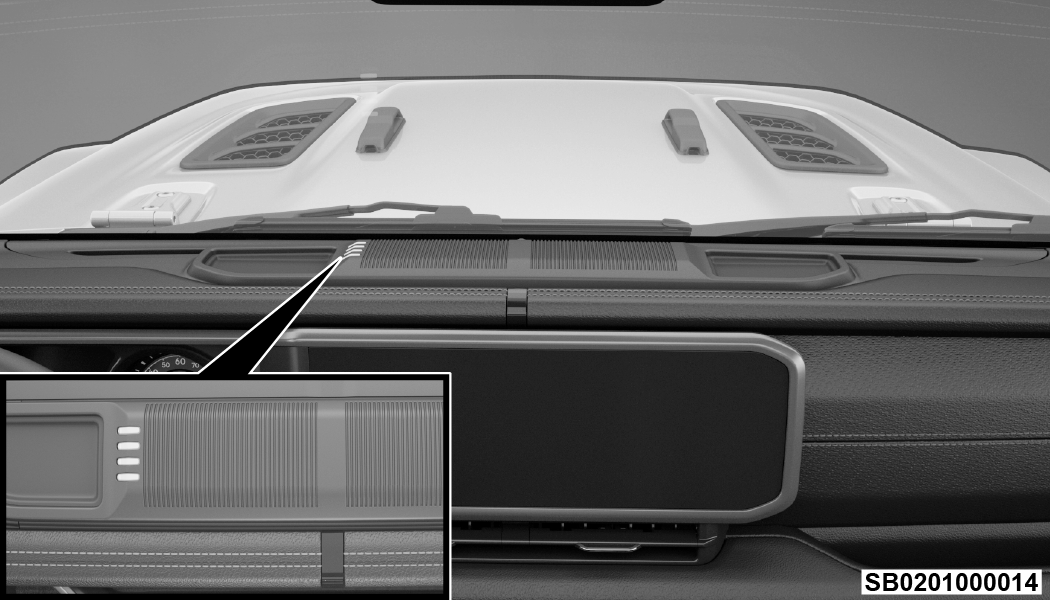

Instrument Panel State Of Charge Indicator
In addition to the battery display in the instrument cluster, your vehicle is equipped with a visual SOC indicator. The SOC indicator is made up of four lights that are mounted to the top center of the instrument panel, which will illuminate when the vehicle is plugged into the charging system.
State Of Charge Indicator
The SOC indicator provides a visual indication of the high voltage battery’s charge status during charging. It is also used to indicate a charging problem as well as waiting for a scheduled charge to begin.
The lights scroll one at a time when the vehicle is plugged in outside of its charging schedule time/day of the week, and it is waiting on the schedule to begin charging.
In extreme hot or cold environments, the lights on the SOC indicator may not illuminate. Charge status is available in the instrument cluster display. In the event of an error in the charging process, the outer two lights will blink.
When the hood is open, the lights on the SOC indicator will not be illuminated.
|
Indicator Lights Illuminated |
Percent Of Battery Charge |
|---|---|
|
1st light blinks |
0 – 25% |
|
1st light on, 2nd light blinks |
26 – 50% |
|
1st and 2nd lights on, 3rd light blinks |
51 – 75% |
|
1st, 2nd, and 3rd lights on, 4th light blinks |
76 – 99% |
|
All four lights on |
100% |
|
Two outer lights are blinking |
Indicates an error in the charging process |
|
Lights turn on one at a time from left to right (when looking at the front of the vehicle) |
Indicates system is waiting for scheduled time in charge schedule to begin charging |
|
All lights turn on, then immediately turn off |
Indicates a successful plug-in |
For each segment of lights illuminated indicating the percent of battery charge, two different blink rates are used. A blink rate of 1 second on/1 second off indicates that the first half is charging. The blink rate will increase to 0.5 second on/0.5 second off to indicate that the second half is charging. When the battery is fully charged, the blinking stops and the lights remain illuminated as charging continues.

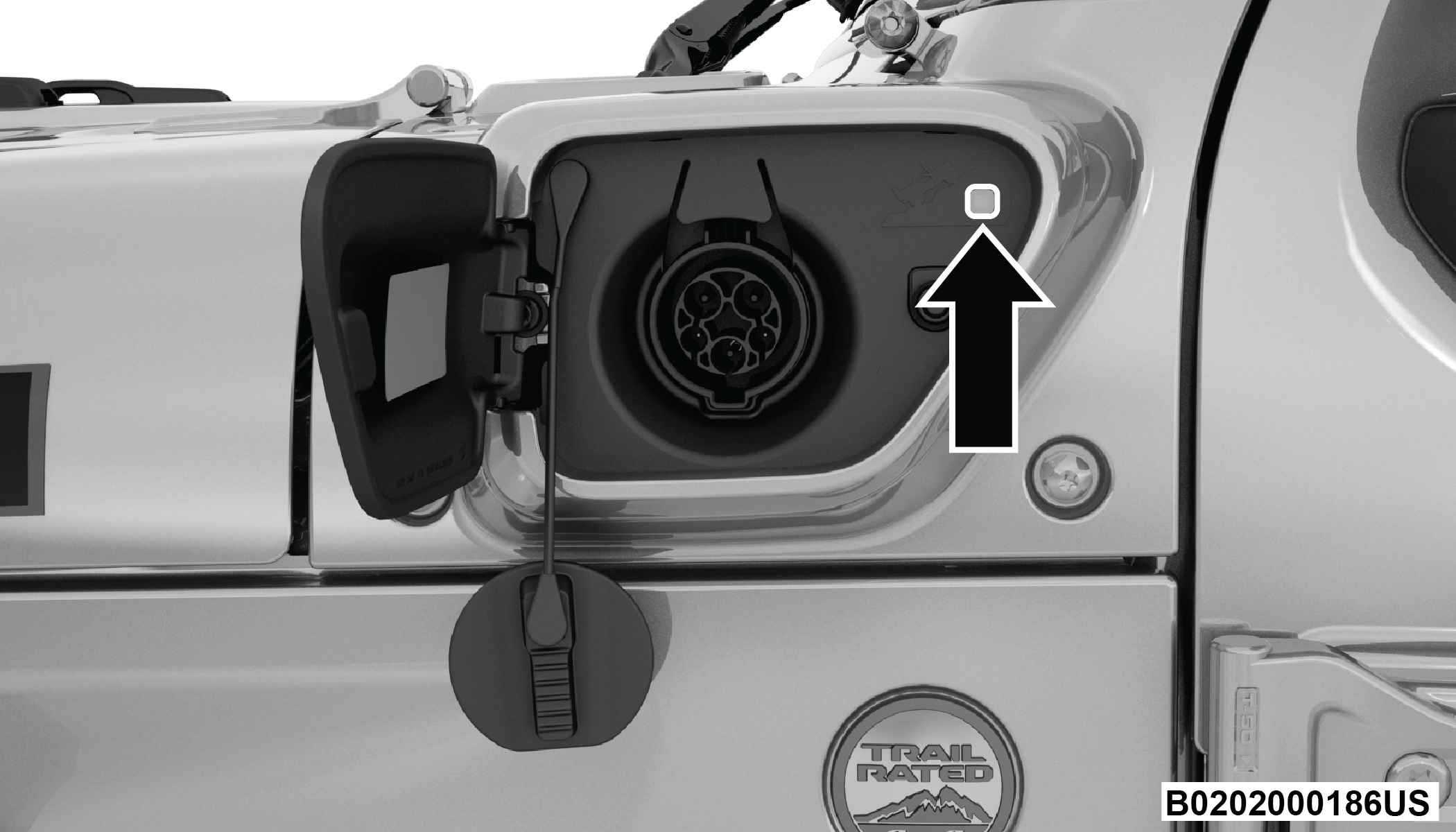

Next to the charging inlet, there is an LED that changes color based on charging status.
Charging Inlet LED Location
|
LED Charging Inlet |
|
|---|---|
|
LED Light Color |
Status |
|
Blue |
Indicates that the system is waiting for a scheduled recharge. |
|
Flashing Green |
Charging process in place. |
|
Solid Green |
Indicates the vehicle is fully charged. |
|
Blinking Red |
Indicates a fault in the charging system. |

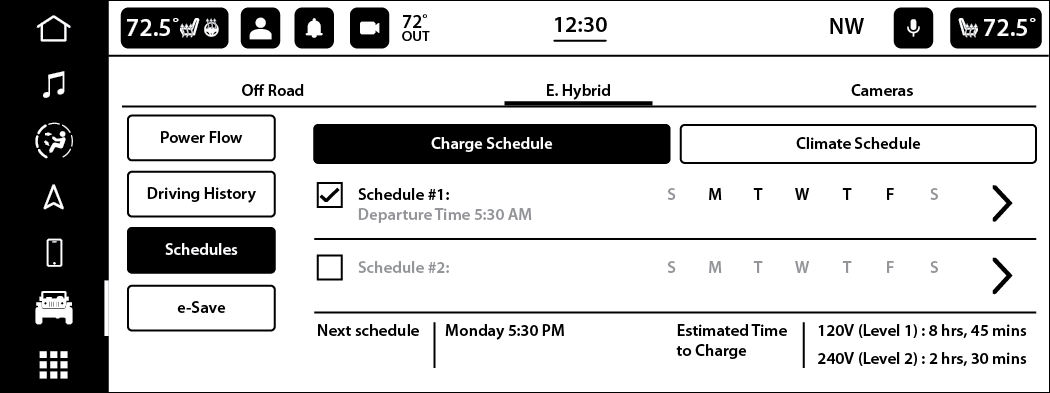

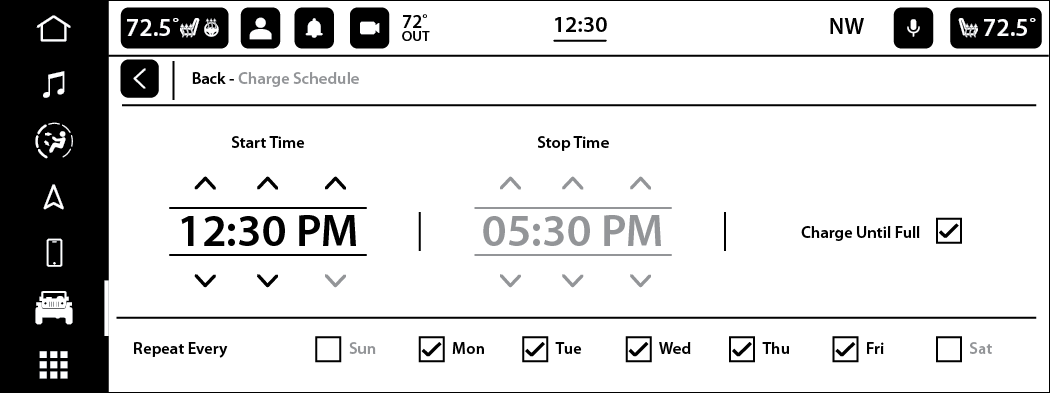

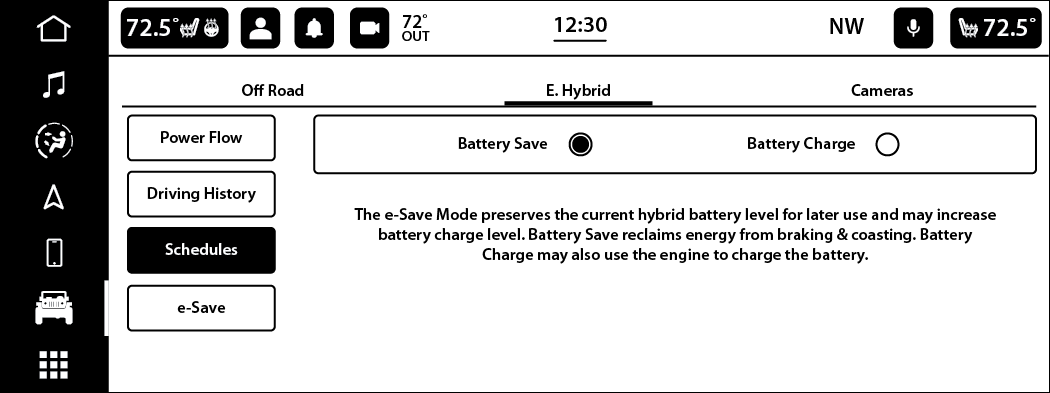

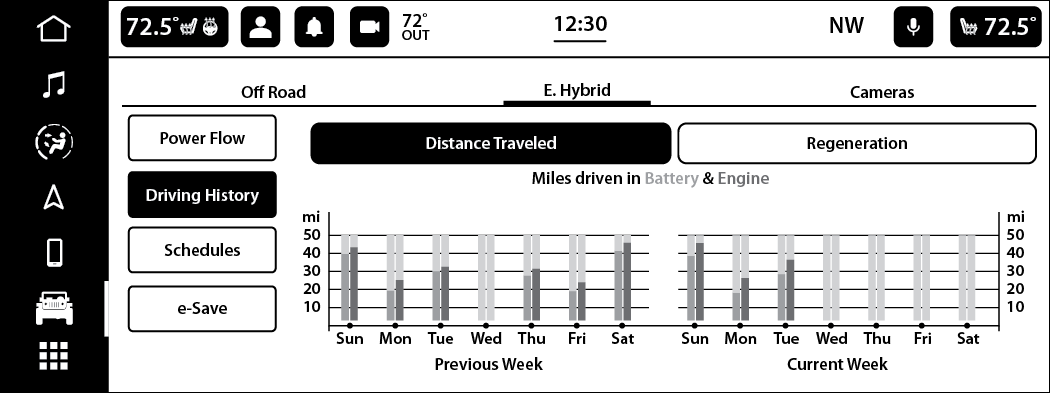

Within your Uconnect system is the Hybrid Electric App that allows you to see your vehicle’s power flow, understand your driving history, and set a charging schedule for your vehicle’s high voltage battery. To access this app, press the Apps button on the main menu bar of the radio’s touchscreen, and locate the Hybrid Electric App. Pressing the app icon brings you to a set of hybrid electric pages: Power Flow, Driving History, Charging Schedule, e-Save, and Charge Settings (if equipped).

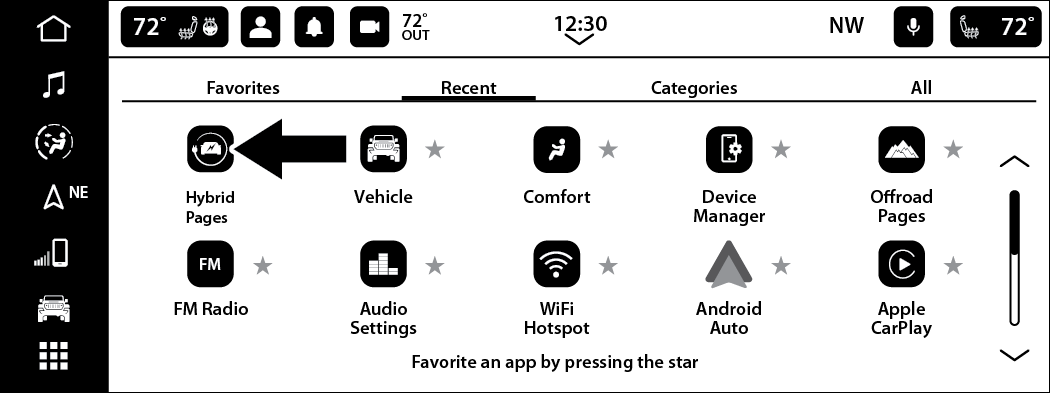

Apps Menu Screen

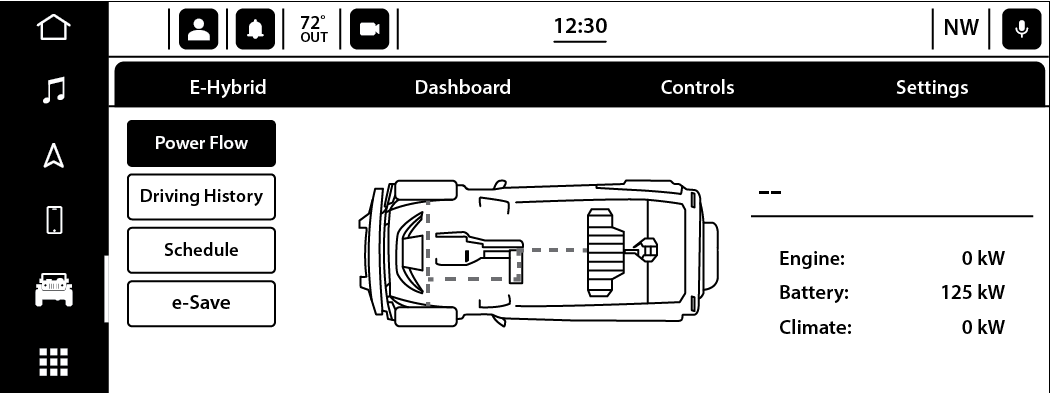

The Power Flow screen shows the current power readings for all of the following:
Engine - Shows the amount of power (in kW) the engine is generating. Based on vehicle operating conditions, this power is used to: propel the vehicle, provide passenger compartment heating, power vehicle electrical loads, and charge the high voltage battery. Engine operation is controlled to maximize fuel economy.
Battery - Shows the amount of power (in kW) the high voltage battery is currently providing/absorbing. A negative kW indicates the vehicle’s high voltage battery is charging.
Climate - Shows the amount of power (in kW) the Climate Control system is using to maintain the current interior temperature.
Power Flow paths are indicated by the direction of the arrows on the touchscreen.
Power Flow Screen
The Driving History screen shows the miles (km) driven in both Full Electric and Hybrid (battery and engine powered) modes for both the previous week and the current week. The data is displayed in a bar graph: Electric mode in teal and Hybrid mode in blue.
On the bar graph, miles (km) driven on the same day in Electric mode (battery only) are always shown below miles (km) driven in Hybrid mode. When one day of the week exceeds 100 miles (160 km) driven, the values for miles (km) driven in Electric and Hybrid modes will be listed above the bar graph in respective colors (teal for Electric and blue for Hybrid).
Driving History Screen
To set a charging schedule, select the Hybrid Electric App on the touchscreen and follow these steps:
Select “Schedules”.
Charging Schedules Screen
Select one of the three charging schedules by pressing the appropriate arrow on the right side of the screen.
Select if Scheduled Charging should “Charge Until Full”.
Set the Charge Start Time: Hours, Minutes, and AM/PM.
This is to occur every week (as long as the vehicle is connected to a Charging Cable).
Set Charge Schedule
When done, press the back arrow. The active schedule will be indicated by the check mark to the right of the schedule event line. The Event Action and Time will be displayed.
To add another Scheduled Charging event, repeat these steps.
A maximum of two independent Scheduled Charging events can be scheduled at a given time.
If “Charge Until Full” is selected, the vehicle must be plugged in within five minutes of the start time. The following are situations in which “Charge Until Full” may not be honored:
If selected for five days (Monday through Friday), and the vehicle is plugged in five or more minutes after the start time on any of those days, “Charge Until Full” will not be honored for that day. “Charge Until Full” will resume on the next day at the scheduled time.
If there are multiple plug/unplug events after first being plugged in within five minutes, “Charge Until Full” will not be honored for that day.
If other schedules (Charge Interval, etc.) are set at a later time in addition to “Charge Until Full” being selected, and the vehicle is plugged in five or more minutes after the scheduled start time, “Charge Until Full” will not be honored for that day. The next available schedule will be followed.
If the charging schedule is not enabled, the vehicle will charge whenever plugged in. It is not necessary to set up the charging schedule to charge the vehicle.
If the vehicle is plugged in outside of the charging schedule set in the Uconnect system (and Charge Until Full is not selected), the vehicle’s battery will not charge. Charging will only begin immediately if the vehicle is plugged in within the time and day of the week set in the schedule. Otherwise, charging will automatically begin when the selected charge time/day of the week occurs or whenever the vehicle is plugged in with no charge schedule set.
Scheduled Charging may be bypassed and charging will begin automatically if the high voltage battery State Of Charge (SOC) is below its optimal operating point.
If the vehicle is turned off outside of the charging window, a radio pop-up message will be displayed, which provides an option to begin charging the vehicle immediately. The pop-up message asks the driver if they would like to “Charge Now?” and provides other information, including the next charging schedule start time and estimated time to charge the battery to 100%. If within one hour of selecting “Yes,” the vehicle is connected to a powered Charging Cable, the vehicle will immediately begin to charge (temporarily ignoring any set charge schedule). To fully deactivate the charge schedule, refer to the “Schedules” feature within the Hybrid Electric App.
The charging schedule can also be overridden if the Charging Cable is plugged in, unplugged, and then plugged in a second time to the vehicle. After the first plug in ofthe vehicle, wait until the battery charge indicator on the instrument panel lights up before unplugging. This “double plug sequence” will override the schedule that is set in the radio, and begin charging the vehicle immediately. The double plug sequence must be completed within 10 seconds for it to override the programmed schedule.
If “Charge Until Full” is selected, and the vehicle is plugged in after the start time of the schedule, the vehicle will start charging when it reaches the start time the next day. If you would like to begin charging immediately, and continue charging until the vehicle is fully charged, you can select the “Charge Now” option or use the double plug override option.
There is also a Climate Schedule which can be set and managed for climate or cabin conditioning.
If the vehicle is turned off outside of the charging window, a radio pop-up message will be displayed. The pop-up message asks the driver if they would like to “Charge Now?” and provides the next charging schedule start time and estimated time to charge the battery to 100%. If within one hour of selecting “Yes”, the vehicle is connected to a powered EVSE, the vehicle will immediately begin to charge (temporarily ignoring any set charge schedule). To fully deactivate the charge schedule, select the “Enable Schedule” checkbox until the check mark is removed from the box.
The charging schedule can also be overridden if an EVSE is plugged in, unplugged, and then plugged in a second time to the vehicle. This double plug sequence will override the set schedule in the Hybrid Electric Pages App, and begin charging the vehicle immediately. The double plug sequence must be completed within 10 seconds for it to override the programmed schedule.
The fourth screen within the Hybrid Electric Pages App is the e-Save screen. From this screen, you can specify the behavior of the e-Save drive mode:
e-Save Screen
Battery Save - Maintains the high voltage State of Charge at its current level under most driving scenarios.
The SOC may increase if there is sufficient energy capture through regenerative braking.
Battery Charge - Uses additional power from the gas engine to increase the high voltage State of Charge, up to 95% capacity.
For information on jump starting your vehicle, JUMP STARTING.
